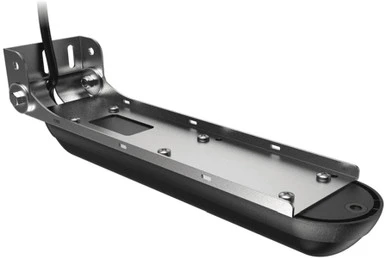

Simrad 000-14489-001 Active Imaging 3-in-1 Transom Mount Transducer

The Simrad 000-14489-001 Active Imaging 3-in-1 Transom Mount Transducer featuring CHIRP, SideScan and DownScan with FishReveal allows you to see structure and cover with unmatched range at a level of refined detail unlike any other structure imaging technology. Active Imaging’s high-level clarity, detail, and target separation make it easier to quickly identify fish-holding structure like rockpiles, standing timber, ditches, drop-offs, and weedbeds to help you find more fish from a greater distance. The exclusive FishReveal Smart Target view gives you the best of CHIRP sonar and DownScan on one screen, with high-detailed DownScan images helping you differentiate fish from structure and cover easily.

Simrad 000-14489-001 Transducer Features:

• Active Imaging 3-in-1 transducer with Lowrance CHIRP, DownScan, and SideScan
• More refined detail and better range than any other imaging technology
• Easier target identification with FishReveal Smart Target View
• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
• Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and Simrad NSS evo3 and GO series displays

Environmental
Operating temperature: -15°C to +55°C (+5°F to +131°F)
Storage temperature: -30°C to +70°C (-22°F to +158°F)

Physical
Cable length: 7.6 m (25 ft)
Mounting options: Transom, flush step, and jackplate mounting
Connector: 9 pin

Transducer
Output: Traditional, SideScan imaging, DownScan imaging and temperature
Frequency: Traditional: 200 kHz/High : Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz
Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft)
Operating speed: Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph)
